Amcache / RecentFileCache.bcf
Windows中的使用这两个文件来跟踪具有不同可执行文件的应用程序兼容性问题，它可用于确定可执行文件首次运行的时间和最后修改时间。
win7、windows server 2008R2等系统保存位置：
只包含了程序的创建时间、上次修改时间、上次访问时间和文件名
C:\Windows\AppCompat\Programs\RecentFileCache.bcf
win8、win10、windows server 2012等系统保存位置：
包含了文件大小、版本、sha1、二进制文件类型等等信息
注：Win7系统安装KB2952664后，也会支持Amcache.hve
C:\Windows\AppCompat\Programs\Amcache.hve
RecentFileCache.bcf解析工具
c#版：https://github.com/ianxtianxt/RecentFileCacheParser
用法实例：
RecentFileCacheParser.exe -f "C:\Windows\AppCompat\Programs\RecentFileCache.bcf" --csv "c:\temp"
RecentFileCacheParser.exe -f "C:\Windows\AppCompat\Programs\RecentFileCache.bcf" --json "D:\jsonOutput" --jsonpretty

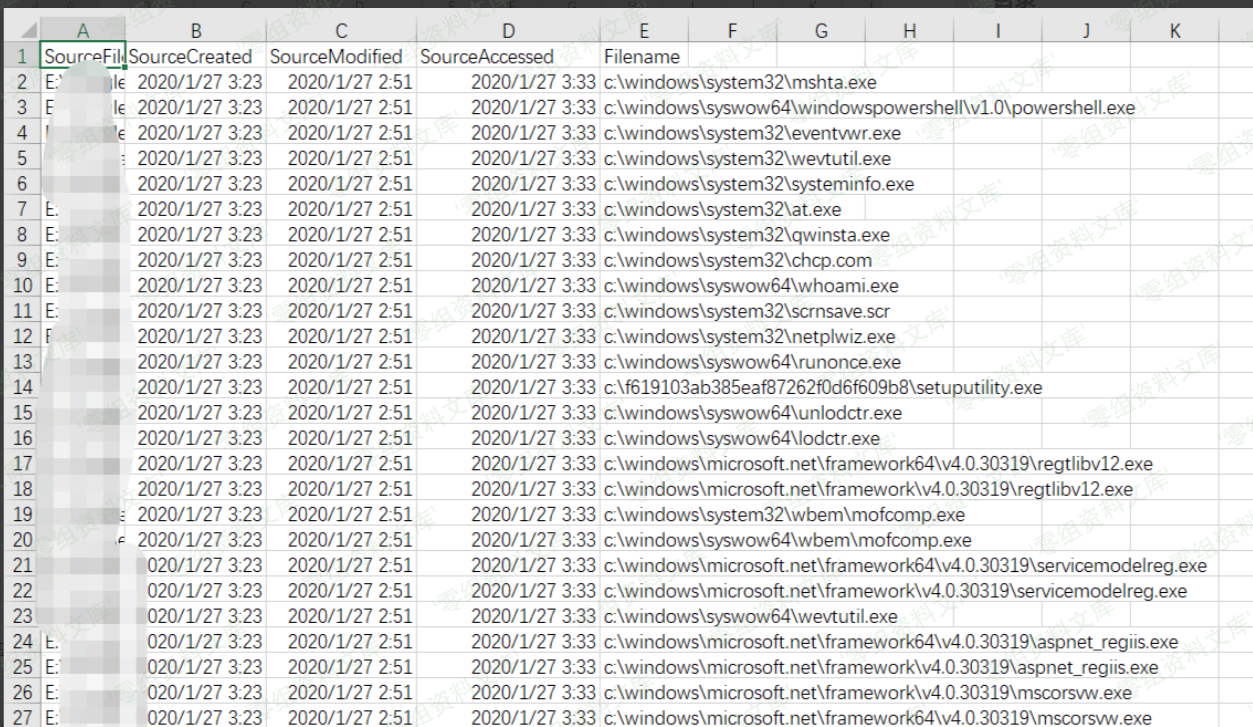

结果
python版：https://github.com/ianxtianxt/recentfilecache-parser
用法
rfcparse.py -f C:\Windows\AppCompat\Programs\RecentFileCache.bcf
Amcache.hve解析工具
c#版: https://github.com/ianxtianxt/AmcacheParser
python版:
#!/usr/bin/python
# This file is part of python-registry.
#
# Copyright 2015 Will Ballenthin <william.ballenthin@mandiant.com>
# while at Mandiant <http://www.mandiant.com>Exe
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
import sys
import logging
import datetime
from collections import namedtuple
import argparse
import unicodecsv
from Registry import Registry
from Registry.RegistryParse import parse_windows_timestamp as _parse_windows_timestamp
g_logger = logging.getLogger("amcache")
Field = namedtuple("Field", ["name", "getter"])
def make_value_getter(value_name):
""" return a function that fetches the value from the registry key """
def _value_getter(key):
try:
return key.value(value_name).value()
except Registry.RegistryValueNotFoundException:
return None
return _value_getter
def make_windows_timestamp_value_getter(value_name):
"""
return a function that fetches the value from the registry key
as a Windows timestamp.
"""
f = make_value_getter(value_name)
def _value_getter(key):
try:
return parse_windows_timestamp(f(key) or 0)
except ValueError:
return datetime.datetime.min
return _value_getter
def parse_unix_timestamp(qword):
return datetime.datetime.fromtimestamp(qword)
def parse_windows_timestamp(qword):
try:
return _parse_windows_timestamp(qword)
except ValueError:
return datetime.datetime.min
def make_unix_timestamp_value_getter(value_name):
"""
return a function that fetches the value from the registry key
as a UNIX timestamp.
"""
f = make_value_getter(value_name)
def _value_getter(key):
try:
return parse_unix_timestamp(f(key) or 0)
except ValueError:
return datetime.datetime.min
return _value_getter
UNIX_TIMESTAMP_ZERO = parse_unix_timestamp(0)
WINDOWS_TIMESTAMP_ZERO = parse_windows_timestamp(0)
# via: http://www.swiftforensics.com/2013/12/amcachehve-in-windows-8-goldmine-for.html
#Product Name UNICODE string
#==============================================================================
#0 Product Name UNICODE string
#1 Company Name UNICODE string
#2 File version number only UNICODE string
#3 Language code (1033 for en-US) DWORD
#4 SwitchBackContext QWORD
#5 File Version UNICODE string
#6 File Size (in bytes) DWORD
#7 PE Header field - SizeOfImage DWORD
#8 Hash of PE Header (unknown algorithm) UNICODE string
#9 PE Header field - Checksum DWORD
#a Unknown QWORD
#b Unknown QWORD
#c File Description UNICODE string
#d Unknown, maybe Major & Minor OS version DWORD
#f Linker (Compile time) Timestamp DWORD - Unix time
#10 Unknown DWORD
#11 Last Modified Timestamp FILETIME
#12 Created Timestamp FILETIME
#15 Full path to file UNICODE string
#16 Unknown DWORD
#17 Last Modified Timestamp 2 FILETIME
#100 Program ID UNICODE string
#101 SHA1 hash of file
# note: order here implicitly orders CSV column ordering cause I'm lazy
FIELDS = [
Field("path", make_value_getter("15")),
Field("sha1", make_value_getter("101")),
Field("size", make_value_getter("6")),
Field("file_description", make_value_getter("c")),
Field("source_key_timestamp", lambda key: key.timestamp()),
Field("created_timestamp", make_windows_timestamp_value_getter("12")),
Field("modified_timestamp", make_windows_timestamp_value_getter("11")),
Field("modified_timestamp2", make_windows_timestamp_value_getter("17")),
Field("linker_timestamp", make_unix_timestamp_value_getter("f")),
Field("product", make_value_getter("0")),
Field("company", make_value_getter("1")),
Field("pe_sizeofimage", make_value_getter("7")),
Field("version_number", make_value_getter("2")),
Field("version", make_value_getter("5")),
Field("language", make_value_getter("3")),
Field("header_hash", make_value_getter("8")),
Field("pe_checksum", make_value_getter("9")),
Field("id", make_value_getter("100")),
Field("switchbackcontext", make_value_getter("4")),
]
ExecutionEntry = namedtuple("ExecutionEntry", map(lambda e: e.name, FIELDS))
def parse_execution_entry(key):
return ExecutionEntry(**dict((e.name, e.getter(key)) for e in FIELDS))
class NotAnAmcacheHive(Exception):
pass
def parse_execution_entries(registry):
try:
volumes = registry.open("Root\\File")
except Registry.RegistryKeyNotFoundException:
raise NotAnAmcacheHive()
ret = []
for volumekey in volumes.subkeys():
for filekey in volumekey.subkeys():
ret.append(parse_execution_entry(filekey))
return ret
TimelineEntry = namedtuple("TimelineEntry", ["timestamp", "type", "entry"])
def main(argv=None):
if argv is None:
argv = sys.argv
parser = argparse.ArgumentParser(
description="Parse program execution entries from the Amcache.hve Registry hive")
parser.add_argument("registry_hive", type=str,
help="Path to the Amcache.hve hive to process")
parser.add_argument("-v", action="store_true", dest="verbose",
help="Enable verbose output")
parser.add_argument("-t", action="store_true", dest="do_timeline",
help="Output in simple timeline format")
args = parser.parse_args(argv[1:])
if args.verbose:
logging.basicConfig(level=logging.DEBUG)
else:
logging.basicConfig(level=logging.INFO)
if sys.platform == "win32":
import os, msvcrt
msvcrt.setmode(sys.stdout.fileno(), os.O_BINARY)
r = Registry.Registry(args.registry_hive)
try:
ee = parse_execution_entries(r)
except NotAnAmcacheHive:
g_logger.error("doesn't appear to be an Amcache.hve hive")
return
if args.do_timeline:
entries = []
for e in ee:
for t in ["source_key_timestamp", "created_timestamp", "modified_timestamp",
"modified_timestamp2", "linker_timestamp"]:
ts = getattr(e, t)
if ts == UNIX_TIMESTAMP_ZERO:
continue
if ts == WINDOWS_TIMESTAMP_ZERO:
continue
if ts == datetime.datetime.min:
continue
entries.append(TimelineEntry(ts, t, e))
w = unicodecsv.writer(sys.stdout, delimiter="|", quotechar="\"",
quoting=unicodecsv.QUOTE_MINIMAL, encoding="utf-8")
w.writerow(["timestamp", "timestamp_type", "path", "sha1"])
for e in sorted(entries, key=lambda e: e.timestamp):
w.writerow([e.timestamp, e.type, e.entry.path, e.entry.sha1])
else:
w = unicodecsv.writer(sys.stdout, delimiter="|", quotechar="\"",
quoting=unicodecsv.QUOTE_MINIMAL, encoding="utf-8")
w.writerow(map(lambda e: e.name, FIELDS))
for e in ee:
w.writerow(map(lambda i: getattr(e, i.name), FIELDS))
if __name__ == "__main__":
main(argv=sys.argv)
powershell版:
function Get-Amcache
{
#Requires -Version 3.0
<#
.SYNOPSIS
This script loads the AMCache hive from the default Windows location and
prints relevant data.
Author: Joff Thyer, Penetration Tester and Security Researcher
Black Hills Information Security
Copyright (c) October 2015
.DESCRIPTION
This script loads the AMCache hive from the default Windows location and
prints relevant data.
.PARAMETER RegHive
The Amcache registry hive file to load. Defaults to \Windows\AppCompat\Programs\Amcache.hve
.PARAMETER DestRegKey
The destination registry key to load the registry hive to. Defaults to HKLM:\amcache
.PARAMETER Since
The historic cutoff date used to select the registry hive objects. All objects are
selected from that date up through today.
.PARAMETER Ext
Specify what file extension you want to match.
.EXAMPLE
PS C:\> Get-Amcache -Since 9/1/2015 -Ext exe
PS C:\> Get-Amcache -Since 9/1/2015 -Filename *install* -Ext exe
#>
[CmdletBinding()]
Param (
[Parameter(HelpMessage="Location of Amcache.hve file")]
[String]$RegHive = $env:SYSTEMROOT + "\AppCompat\Programs\Amcache.hve",
[Parameter(HelpMessage="Destination registry key to load amcache hive to")]
[String]$DestRegKey = "HKLM\amcache",
[Parameter(HelpMessage="Amount of amcache history cutoff date. Defaults to 90 days back.")]
[ValidatePattern("^\d{1,2}/\d{1,2}/\d{4}$")]
[String]$Since = (Get-Date).AddDays(-90).ToString('MM/dd/yyyy'),
[Parameter(HelpMessage="Specify the file extension to match. Matches all by default.")]
[ValidatePattern("^exe|dll|sys$")]
[String]$Ext = "*",
[Parameter(HelpMessage="Specify a filename to match.")]
[String]$Filename="*",
[Switch]$Descending = $false
)
try {
reg.exe load $DestRegKey $RegHive | Out-Null
$rootfile = $DestRegKey.replace("\", ":") + "\Root\File"
if (-not [IO.Path]::GetExtension($Filename)) { $Filename = $Filename + "*"}
$sortparams = @{ Property = "TimestampLastModified" }
if ($Descending) { $sortparams.Descending = $true }
Get-ChildItem -Recurse -Path $rootfile | Get-ItemProperty | `
foreach {
$ts_created = ""
$ts_lastmodified = ""
$ts_compile = ""
if ($_.f) {
$origin = [TimeZone]::CurrentTimeZone.ToLocalTime([datetime]'1/1/1970')
$ts_compile = $origin.AddSeconds($_.f)
}
if ($_.12) { $ts_created = [DateTime]::FromFileTime($_.12) }
if ($_.17) { $ts_lastmodified = [DateTime]::FromFileTime($_.17)}
if ([IO.Path]::GetExtension($_.15) -like "." + $Ext `
-and [IO.Path]::GetFilename($_.15) -like $Filename) {
New-Object psobject -Property @{
ProductName = $_.0
CompanyName = $_.1
FileVersionNo = $_.2
LangCode = $_.3
SwitchBackContext = $_.4
FileVersion = $_.5
FileSize = $_.6
PEHeaderImageSize = $_.7
PEHeaderHash = $_.8
PEHeaderChecksum = $_.9
FileDescription = $_.c
TimestampCompile = $ts_compile
TimestampCreated = $ts_created
FilePath = $_.15
TimestampLastModified = $ts_lastmodified
ProgramID = $_.100
SHA1Hash = $_.101
}
}
} | Where { $_.TimestampLastModified -gt $Since } `
| Sort-Object @sortparams
}
catch {
$ErrorMessage = $_.Exception.Message
Write-Output $ErrorMessage
break
}
finally {
[gc]::collect()
[gc]::WaitForPendingFinalizers()
reg.exe unload $DestRegKey | Out-Null
}
}
用法示例：
AmcacheParser.exe -f "C:\Windows\AppCompat\Programs\Amcache.hve" --csv C:\temp
AmcacheParser.exe -f "C:\Windows\AppCompat\Programs\Amcache.hve" -i on --csv C:\temp
AmcacheParser.exe -f "C:\Windows\AppCompat\Programs\Amcache.hve" -w "c:\temp\whitelist.txt" --csv C:\temp

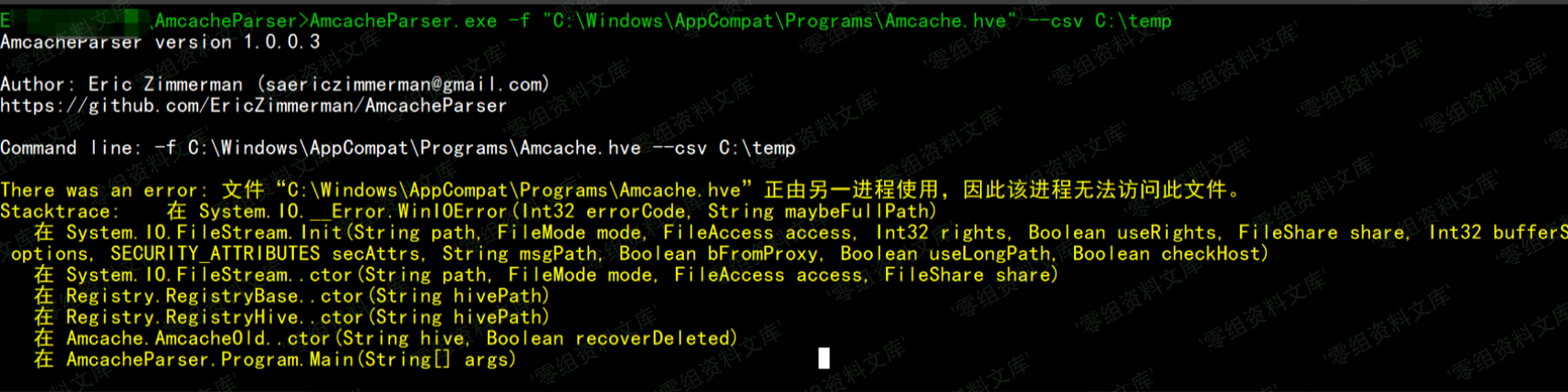

如果我们直接执行的话，会提示："正由另一进程使用，因此该进程无法访问此文件"
解决方法是把Amcache.hve复制到其它目录，我们可以使用shadow copy把Amcache.hve复制到当前目录，然后再执行就可以了

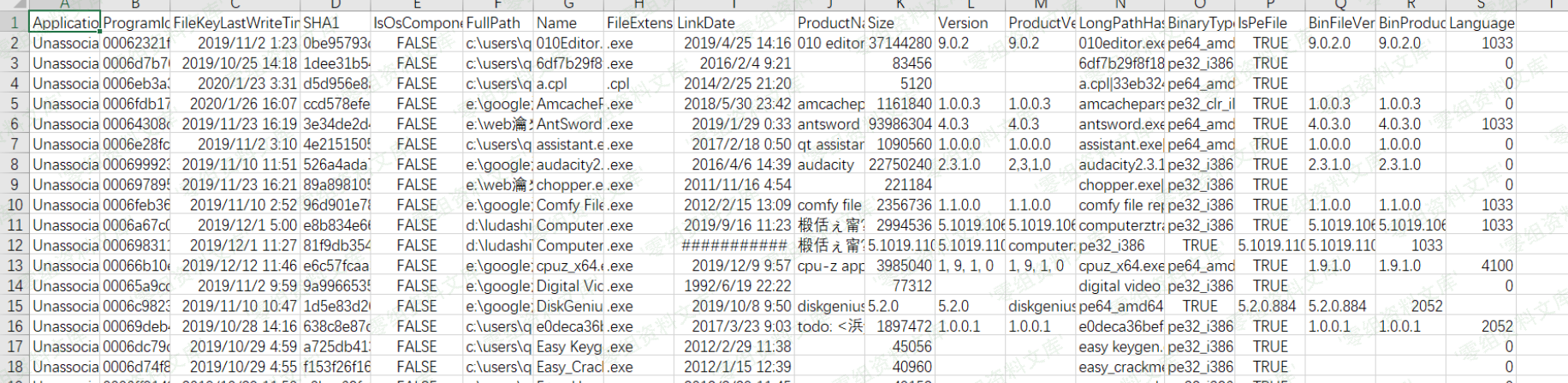

结果
